Products
We supply the most comprehensive robot packaging automation products , including all kinds of packing and palletizing.
The automatic shrink film packing machine is applicable to Food, Beverage, Dairy, Wine, Medicine and Health care, Dairy chemicals and other products of the automatic collective packaging by shrink film.
The Multi-function delta robot adopt Genmany Motion Control Systems, and the main parts of robot is German original production, robot protection level: IP65, the robots are widely used in many different packaging process.
The heat shrink film packing machine can be used to Food, Beverage, Dairy Products, Wine Industry, Medicine and health care, Daily chemical industry and other products of plastic packaging, which replace the carton packaging, reduce the cost of package and increase profits.
The automatic case unpacking machine is widely used in Food, Beverage, Medicine, Cosmetic and other industry 's packing line, cartons are formed automatiically, you can chose tape or hot melt glue for sealing.

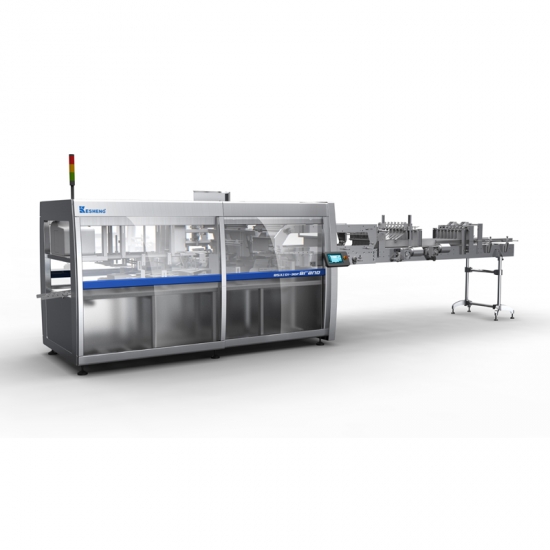

The Auto carton wrapping machine is widely used to Beer, Beverage and other filling products at the end of the production line that allow products to be automatically loaded into the carton. It is also suitable for liquor, wine, pharmaceutical, dairy products, Washing, cosmetics and condiments and other industries.
Brand:
keshengItem NO.:
ZDBZ/250A2Product Origin:
ChinaShipping Port:
XIAMENLead Time：
45daysEquipment workflow
(1)Feed transportation (2) Cardboard warehouse (3) Cardboard transport cache (4) Pushing and blanking (5) Carton forming

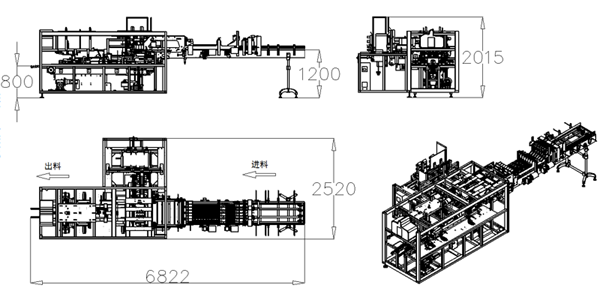

Carton wrapping machine sketch
Main technical data
1、Packing speed: 25 box/min
2、 Packing form: one piece carton wrapping
3、 Packed: PE bottle or glass bottle
4、Packing specification: 3x4 bottle/box,4x6 b/box (according to customer requirements)
5、Total power: 5.5kw/380v (mechanical part); 7kw/380v (hot melt glue machine)
6、Compressed air:0.4-0.7Mpa; 400L/min
7、System of hot melt glue machine: US Nordson or Swit Robatech brand
8、Spraying time: 0.15 sec.
9、Equipment material selection: carbon steel material mainly for whole machine, stainless steel for parts contacted with products
10、 Machine weight: about 2600kg
11、 Outline size (LxWxH): 6200x2900x1700mm
Automatic box folding machine
The automatic box folding machine is used to Dairy products, Food, Beverage, Medicine, Cosmetic and another product's tray production automation, which replace manually folding box and maximize the reduction labour intensity of workers.
Fully automatic carton packing line
Automatic carton packing line could put packages of various specifications and form into the open carton in shape. Meanwhile, Completed the adhesive or spray sealing and other actions. This process is fully automatic operation.
Automatic carton sealing machine
This sealing machine has a wide range of application, which suitable for Household appliances, Textiles, Food, Daily necessities, Pharmaceuticals, Light industry, Chemical and other industries product packaging and sealing of carton.
Automatic case unpacking machine
The automatic case unpacking machine is widely used in Food, Beverage, Medicine, Cosmetic and other industry 's packing line, cartons are formed automatiically, you can chose tape or hot melt glue for sealing.
High speed film wrapping machine
High Speed Automatic Film Packing Machine can be applied to Automatic Wrapping Film packing production line of Food, Beverage, Dairy Products, Wine Industry, Medicine, Heath Care etc. Featured by high automation degree, simple operation and adjustment. Beside, it also achieve color film positioning packaging.
Automatic box folding machine
The automatic box folding machine is used to Dairy products, Food, Beverage, Medicine, Cosmetic and another product's tray production automation, which replace manually folding box and maximize the reduction labour intensity of workers.
Pillow-type packaging machine
pillow type packaging machine is used for totally enclosed film packing of food,medicine and health products, daily, chemical and hardware products, etc. It can protect the products from water, moisture and dust .
Single lever film packing machine
The automatic shrink film packing machine is applicable to Food, Beverage, Dairy, Wine, Medicine and Health care, Dairy chemicals and other products of the automatic collective packaging by shrink film.
